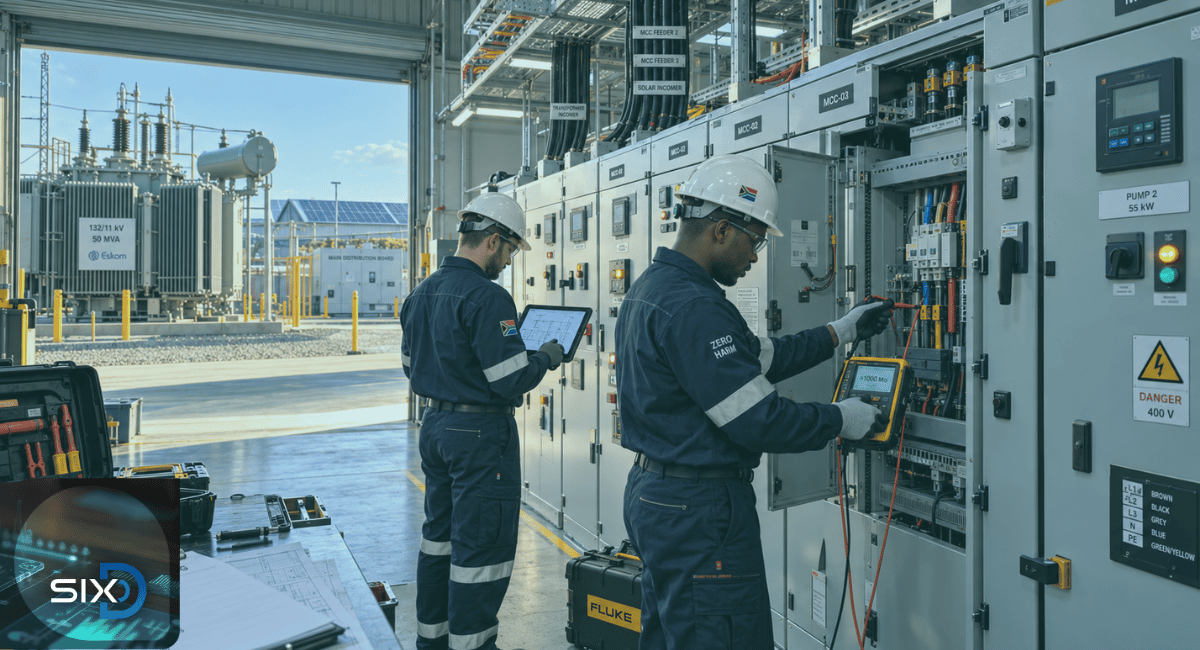

What Should an Industrial Electrical Construction Project Include?

An industrial electrical construction project is far more than pulling cable and mounting distribution boards. It is the backbone of production, safety and uptime for the next 20 years or more. When the scope is incomplete, the gaps show up later as tripping, overloaded boards, failed inspections and costly retrofits.

This guide sets out exactly what a complete industrial electrical construction project should include in South Africa. It covers every stage, from feasibility to handover, and highlights the compliance requirements that many scopes leave out. Use it as a checklist when you brief a contractor, review a tender or plan a plant upgrade.

What Is an Industrial Electrical Construction Project?

An industrial electrical construction project is the planning, design, installation, testing and handover of electrical systems for heavy-use facilities. Typical sites include factories, mines, processing plants, warehouses, agricultural operations and utility infrastructure.

Unlike commercial work, industrial installations must handle high fault levels, large motor loads, harsh environments and continuous operation. As a result, the scope needs stronger engineering, tighter coordination and more rigorous documentation. Moreover, the electrical system must integrate with automation, process equipment and, increasingly, renewable energy.

Industrial Electrical Construction Project Scope at a Glance

1. Planning Your Industrial Electrical Construction Project

Every successful project starts before any design work begins. Front-end planning defines what the facility needs today and what it will need in five to ten years. Skipping this stage is one of the most common reasons industrial projects run over budget.

A sound planning phase should include:

• Site survey and existing infrastructure assessment: Condition of current switchgear, cabling, earthing and supply points.
• Load study: Connected load, maximum demand, motor starting currents and planned expansions.
• Supply capacity check: Confirming whether the Eskom or municipal supply can support the new demand, and starting supply upgrade applications early.
• Operational constraints: Shutdown windows, live-plant interfaces and production schedules.
• Project risk assessment: Technical, safety, programme and supply-chain risks identified upfront.

In addition, long-lead items such as transformers, MV switchgear and custom MCCs should be identified now. Their delivery times often drive the entire programme.

2. Electrical Design and Engineering

Design is where the quality of an industrial electrical installation is largely decided. A complete design package should be detailed enough for accurate pricing, safe construction and reliable operation.

Core Design Deliverables

• Single-line diagrams (SLDs): The master map of the electrical system, from incoming supply to final circuits.
• Load and maximum demand calculations: Used to size transformers, switchgear and cables correctly.
• Fault level and protection coordination studies: These ensure the nearest protective device trips first, isolating faults without shutting down the whole plant.
• Cable sizing and voltage drop calculations: Critical for long cable runs and large motors.
• Arc flash risk assessment: Identifies incident energy levels and the PPE needed at each board.
• Layouts and schedules: Equipment layouts, cable routes, cable schedules and wiring diagrams.

Design for Growth and Environment

Good design also plans for change. Many engineers recommend 20% to 30% spare capacity in transformers, boards and containment. This allows new equipment to connect without a major rebuild.

Equally, the design must suit the operating environment. Dust, moisture, heat, vibration and corrosive atmospheres all affect equipment selection and IP ratings. Where flammable gases, vapours or combustible dust may be present, areas must be classified in line with SANS 10108, and suitable explosion-protected equipment must be specified.

3. Power Supply and Distribution Infrastructure

Reliable power distribution keeps production running. This part of the scope covers how electricity enters the site and how it reaches every load safely.

• Medium-voltage infrastructure: MV switchgear, ring main units, overhead lines or underground reticulation.
• Transformers and mini-substations: Step-down transformers sized for current and future demand.
• Main and sub-distribution boards: Type-tested LV switchgear assemblies with correctly rated protection.
• Standby and backup power: Generators, automatic changeover switches and UPS systems for critical loads.
• Power quality equipment: Power factor correction and harmonic filtering, particularly where many VSDs are installed.

For medium-voltage work, the installation must comply with SANS 10142-2. This standard covers MV installations above 1 kV and up to 22 kV, with an installed capacity of up to 3 MVA. Larger or more complex networks typically need specialist electrical infrastructure engineering.

4. Cable Routing and Containment

Cabling is often treated as a commodity. However, poor routing and containment cause overheating, damage and expensive future modifications.

A complete scope should specify:

• Cable trays and ladders: Heavy-duty, correctly supported and sized with spare space.
• Trenches, sleeves and manholes: For underground routes between buildings and substations.
• Busbar trunking: A flexible option for high-current distribution along production lines.
• Segregation: Separation of power, control, instrumentation and data cables to prevent interference.
• Cable selection: Armoured, fire-rated or halogen-free cables where the environment requires them.

Furthermore, every cable should be labelled and recorded in a cable schedule. This makes fault-finding and future upgrades far quicker.

5. Motor Control, Automation and Monitoring

Most industrial loads are motors. Therefore, motor control and automation form a major part of any industrial electrical construction project.

• Motor control centres (MCCs): Centralised starters, contactors, overloads and protection for multiple motors.
• Variable speed drives (VSDs): Precise speed control for pumps, fans and conveyors, with significant energy savings.
• PLCs and control panels: The logic that automates process sequences and safety interlocks.
• Energy and condition monitoring: Metering, sensors and IoT devices that show how the plant uses power.

Integration is key here. The electrical contractor must coordinate closely with process, mechanical and automation teams. Modern facilities also benefit from connected monitoring, which links naturally with IT, IoT and business solutions for real-time operational visibility.

6. Earthing, Bonding, Lightning and Surge Protection

Protection systems safeguard people first and equipment second. They are also among the items most often under-specified in tenders.

• Earthing system design: Earth electrodes, earth mats and main earth bars designed for the site's soil resistivity and fault levels.
• Equipotential bonding: Bonding of structures, pipework, cable trays and equipment frames.
• Circuit protection: Correctly rated circuit breakers, MCCBs, earth leakage protection and protection relays.
• Lightning protection: Risk assessment and lightning protection system design in line with SANS 10313.
• Surge protection devices: Installed at incoming supplies and sensitive control equipment.

Lightning protection deserves particular attention in South Africa, as the Highveld experiences some of the highest lightning ground flash densities in the world. A single strike can destroy PLCs, drives and communication networks in seconds.

7. Renewable Energy and Energy Resilience

Energy resilience is now a core design requirement for South African industry. Grid instability and rising tariffs mean that new installations should be ready for alternative energy sources.

A forward-looking scope should consider:

• Solar PV readiness: Space, structural capacity and board positions for current or future PV systems.
• Battery energy storage systems (BESS): For peak shaving, backup and load shifting.
• Hybrid integration: Seamless coordination of grid, solar, battery and generator supplies.
• Embedded generation compliance: Grid-tied systems must meet NRS 097-2-1 requirements and be registered with the local utility.

Designing for this upfront costs far less than retrofitting later. Our renewable energy solutions are often delivered alongside new electrical construction for exactly this reason.

8. Health, Safety and Construction Risk Management

Electrical construction is high-risk work. A credible contractor manages safety as an integral part of the project, not as an afterthought.

The scope should include:

• Compliance with the OHS Act and Construction Regulations, 2014: Including health and safety plans, risk assessments and the appointment of competent persons.
• Safe work procedures: Lockout-tagout, permit-to-work systems and safe isolation of live plant.
• Method statements: Step-by-step plans for high-risk tasks such as energisation and live tie-ins.
• Site safety management: Toolbox talks, inspections, incident reporting and PPE control.

At SixD, safety sits within a broader risk intelligence approach. In other words, we connect project risk, operational risk and compliance, so problems are identified before they reach site.

9. Quality Control, Testing and Commissioning

Testing proves that the installation is safe, compliant and ready for production. It should be planned from the start, not squeezed in at the end.

Quality Control

A quality control plan (QCP) and inspection and test plans (ITPs) define the hold points, inspections and sign-offs for each activity. This keeps workmanship consistent and gives the client clear evidence of quality.

Testing and Verification

• Insulation resistance testing: Confirms cable and equipment insulation is sound.
• Earth continuity and earth loop impedance testing: Confirms protective devices will operate during a fault.
• Protection relay and breaker testing: Verifies settings match the coordination study.
• Factory acceptance testing (FAT): Tests MCCs, panels and switchgear at the manufacturer before delivery.
• Site acceptance testing (SAT): Tests the complete system once installed and connected on site.

Finally, commissioning brings the system into service in a controlled sequence. A structured energisation procedure protects both people and equipment during this critical step.

10. Handover: Closing Out an Industrial Electrical Construction Project

The project is not complete until the documentation is. A thorough handover pack protects the client legally and makes future maintenance far easier.

• Certificate of Compliance (CoC) and test report: Issued by a registered person in terms of the Electrical Installation Regulations.
• As-built drawings: Updated SLDs, layouts and cable schedules that reflect what was actually installed.
• Quality data packs: Signed ITPs, test certificates, material certificates and inspection records.
• O&M manuals: Equipment manuals, settings, spares lists and warranty information.
• Training: Operator and maintenance team training on new equipment.
• Maintenance recommendations: A planned maintenance schedule to protect asset life.

Keep in mind that any future addition or alteration requires a CoC for at least that new work. Accurate as-builts make this process far simpler. Beyond handover, electrical asset integrity and reliability services help keep the installation performing for its full design life.

Common Gaps That Derail an Industrial Electrical Construction Project

Even experienced teams can miss critical items. These are the gaps we see most often:

• No spare capacity, forcing major rework when production expands.
• Late utility supply applications that delay energisation by months.
• Missing protection coordination studies, causing nuisance tripping across the plant.
• Under-specified earthing and lightning protection on high-risk sites.
• Poor coordination with civil, mechanical and automation contractors.
• Incomplete as-builts and data packs, leaving the client exposed at audit time.

A clearly defined scope closes these gaps before construction starts. That is the single best way to protect budget, programme and safety.

How SixD Delivers Industrial Electrical Construction Projects

SixD Projects delivers commercial and industrial electrical construction for mining, manufacturing, agriculture, energy and infrastructure clients. We support projects from planning and coordination through installation, testing, commissioning and handover.

What sets us apart is integration. We combine electrical construction with MV and LV infrastructure, renewable energy, IoT and risk intelligence. As a result, your electrical system is designed around how your operation actually works, both now and in the future.

Our project controls include quality control plans, data packs and structured handover documentation. In addition, our integrated management systems expertise means safety, quality and compliance are built into every stage. You can see examples of our work in our case studies.
